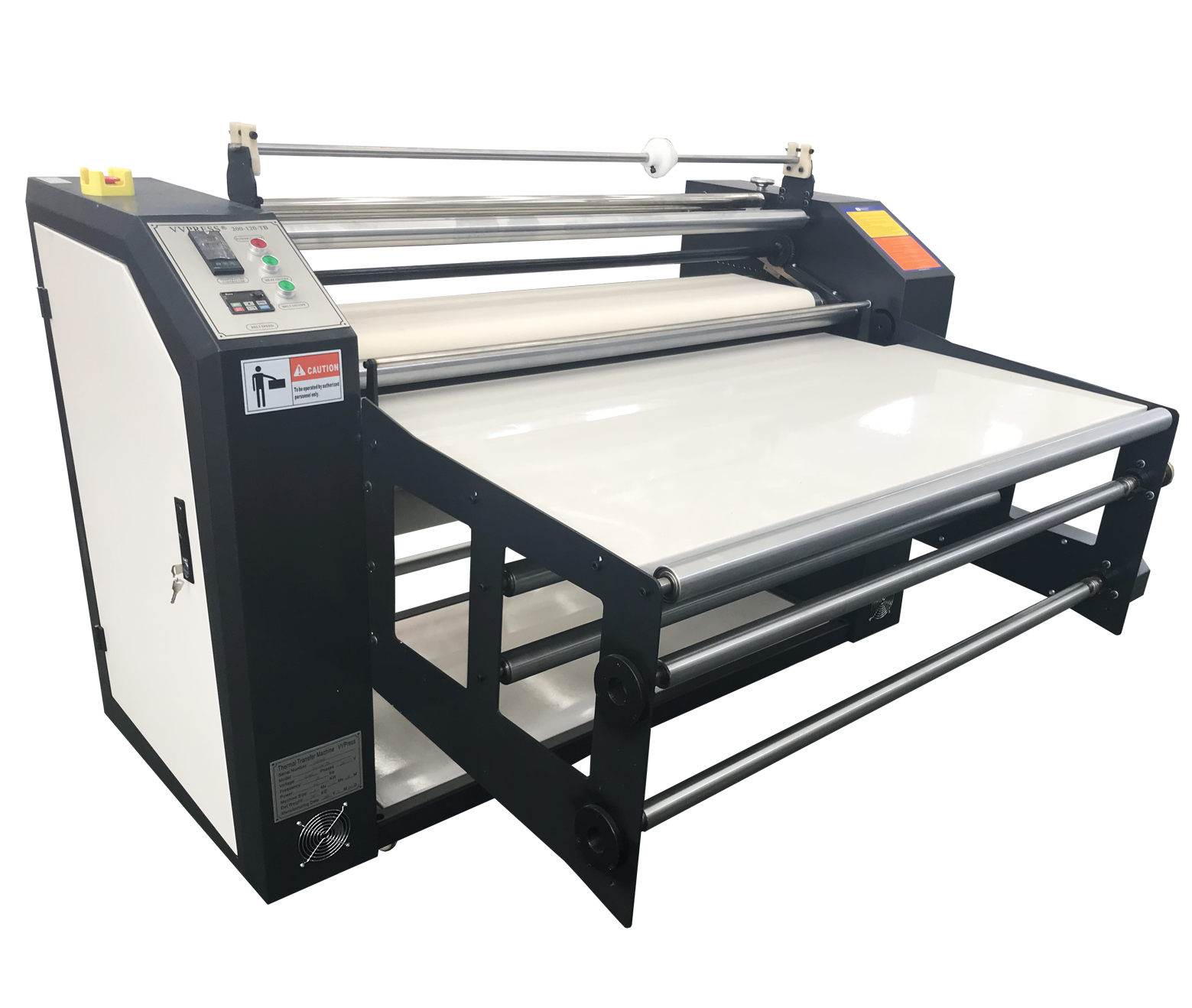

Features:
Roll to roll or Piece to piece
Oil drum, 200mm or 7.9"
3Pairs of feeding and take-up rolls
Max blanket width: 1.3m or 51"
| Model | 200-130-TB |
| Heating media | Oil |
| Voltage | Single phase, 220v |
| Heating power | 6.5kw |
| Number of heating elements | 3 |
| Diameter of Drum | 200mm or 7.9" |
| Transfer speed | up to 0.5m/min |
| Max Temperature | 240℃or 464℉ |
| Transfer Width | 1200mm or 47" |
| Felft Width | 1300mm or 51" |
| Process Path | Feeding in through top Drum |
| Function of roll to roll | Y |
| Function of piece to piece | Y |
| Number of feeding rollers | 3 |
| Number of collecting rollers | 3 |
| Working table included | Y |
| Weight | 650kgs |
| Installation dimension | 1900mm(width)*1250mm(length) |
