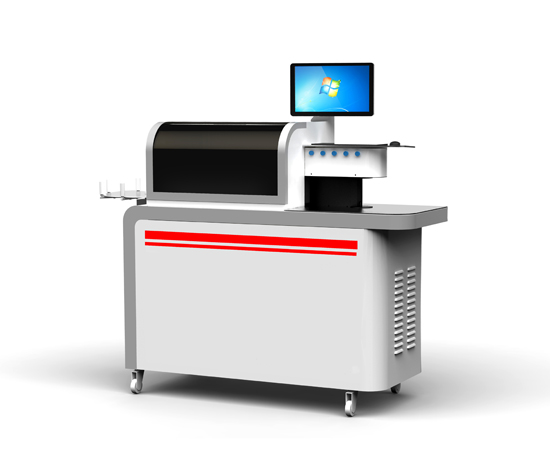

VVBEND AUTOMATIC CHANNEL LETTER BENDING MACHINE

For bending letter with high precision and without scratches on the surface by clamping and alternate feeding.

Features:

Introduction

  1. Retractable alternative bending format, low bending scratch.
  2. Coincide with the various kinds of precision cutting of panels 99%.
  3. Long tool working life, low slotting cost.
  4. Fast feeding speed, maximum feeding speed:20m/s, no scratch on appearance,
  5.  It can meet different demand of different materials
  6.  Roll-feed, with the unique closed-loop design and professional parameter database





Technical Parameters:

Parameter Description
Power supply AC220V
Total power 2.0kw
Compressed air 0.6-0.8kg/cm²
Number of controlled axis 4
Min folding round radius R7.5mm
Applicable material aluminum, stainless steel, galvanized
Material thickness 0.6-1.0mm
Processing height 20-120mm
Material feeding method clamping and alternate feed
File format PLT/AI/DXF
Net weight 385KG
