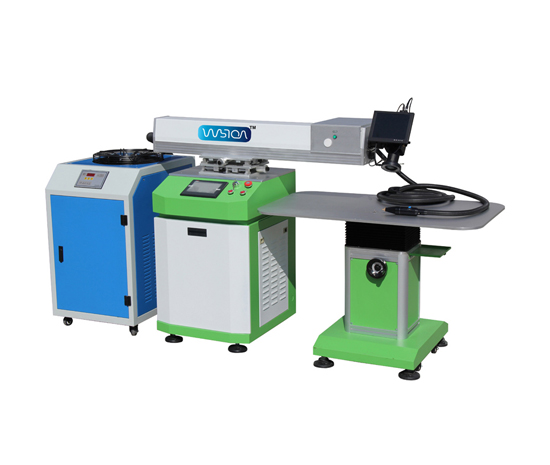

VVBEAM AD Metal Letters Laser Welding Machine

Applied for the welding of various metal letters, Aluminium letters,LED illuminated letters, customized metal signage, and exterior billboards.

Features:

Features:

  1. Red light fast positioning, CCD display, microscope optional
  2. Adjustable working table allows welding from small size to big size of work piece
  3. Fast working speed; professional jig ensures the focus fixed and makes welding easier without using CCD or microscope
  4. Slight distortion and affect by heating.
  5. Capable of partial heating process.
  6. Able to deal with complex, profiled, or tiny letters.
  7. Low noise and no pollution.
  8. Ultrafine positioning rod makes the welding of tiny corner easier without changing spot position
  9. New metal processing technology brings higher quality of end products.







Technical Parameters:



Model No. VWY400HZ
Machinery Part Optical system moves 800mm distance and 90° rotate
Bench Stroke Working area 750*1000
Bearing of bench ≤200KG
Power supply 220V±10%/50/60Hz或380V±10%/50/60Hz
Laser type Pulsed Nd:YAG (xenon lamp)
Adjustment range of light spot 0.1～0.3mm
Size of light spot 0.2～3.0mm
Laser wavelength 1064nm
Pulse width ≤15ms
Max laser power 400W
Pulse frequency ≤50Hz
Laser output 200mm
Laser cooling Water cooling
Observation system CCD( microscope for option)







Details directions:

  1. By turning a knob, laser cavity can move backward and forward freely for the convenience of big size letters welding
  2. Laser cavity can move left and right easily for more space when welding big letters
  3. The adjustment of parameter setting is very easy, up to 10 sets of parameters can be memorized for  your option
