FEATURES:
| * Industrial Ricoh G5i Printhead | |
| * Strong Adhesion | |
| * Cylinder & cone can be high-speed printed | |
| * Faster Printing Speed | |
| * Seamless Connection Printing | |
| * 3D embossed Effect | |

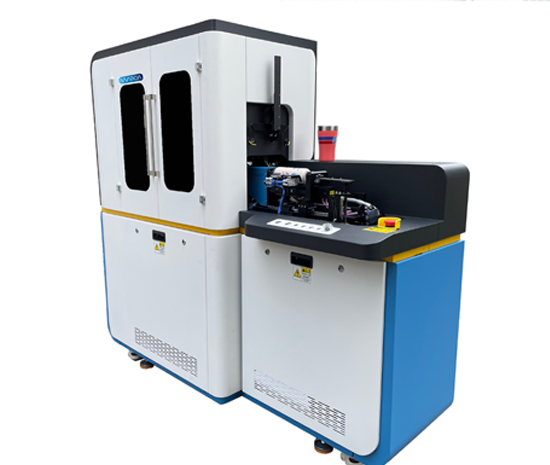

| Model | VC-360G | Cleaning system | Auto positive pressure cleaning | |
| Printing diameter | 40MM－115MM | Data interface | Gigabit Ethernet | |
| Taper tolerance | 0－5 degrees | Operation software | RIPrint | |
| Printing length | 10MM－265MM | Power requirement | 50/60Hz AC220/110±>10A | |
| must connect ground wire | ||||
| Printing method | Spiral printing，White + color +varnish +Primer | Environment | Temperature | 20℃ - 30℃ |
| Printhead | Ricoh G5i | Humidity | 30% - 60% | |
| High precision | 960*900DPI | Dusty | similar to office environment | |
| Ink drop | 3.5PL | Dimension of machine | 1812*660*1820MM | |
| Print speed | 15S/PCS | Certification | CE / ROHS / SGS | |
| Ink color | K、C、M、Y、W，Varnish | Weight | 300KG | |
| Curing system | LED UV Lamp | Printhead quantity | 1-4pcs | |
| Image format | TIFF,JPG,EPS,PDF,PNG,AI,PSD | Application | Cylinder, cone products | |
