| FEATURES： | |
| 1. This machine can save cutting labors up to 7 people. | |
| 2. Automatic Material Feeding | |
| 3. Automatic Vision Recognition Software | |
| 4. Zero Cut Design Setup Time | |
| 5. Perfect Distorted Patterns Cutting | |
| 6. Cutting Any Type of Textile | |
| 7. Hot Seal No Fraying Cutting Edge | |
| PARAMETER: | |

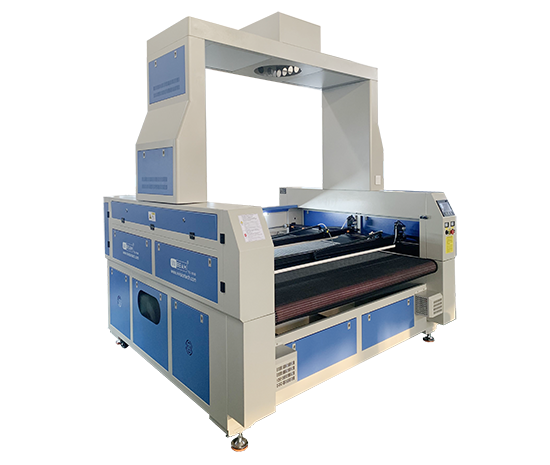

| Mode | TLC-1816D |
| Working Area | 1800mm*1450mm |
| Laser Type | Glass CO2 Laser Tube |
| Laser Power | 120W |
| Heads of Laser | Dual, Two Beams |
| Dimensions | 2410mm*2200mm*2880mm |
| Net Weight | 1000KG |
| Motion System | Step Motor |
| Cooling System | 5200 Industrial Water Chiller |
| Software | Own designed software |
| Working Speed | 200-600 mm/s |
| Power Supply Requirements | AC110V~220V±5% 50Hz/60Hz 1Phase |
| Format Supported | AI\BMP\PLT\DXF\DST |
| Positioning Accuracy | ±0.1mm |
| Operating Temperature | minus 10℃~45℃ |
| Operating Humidity | 5-95% |
| Total Power | <1.5KW (Excluding exhauster) |
